GATEWAY 3G Portable Ramp

Name: GATEWAY 3G Portable Ramp
Brand: EZ-Access
SKU: GATEWAY RAMP
Price: 455.00 USD
Availability: InStock

Sku: GATEWAY® RAMP
Starting at: $455.00 USD

$455.00

Shipping calculated at checkout.

Accepted Payments

Gateway 3G Ramp Features:

Up to 1,000 lbs weight capacity.
Heavy-duty aluminum construction
Will not rust or deteriorate from elements
Slip-resistant surface

EZ-Access Gateway Portable Ramp

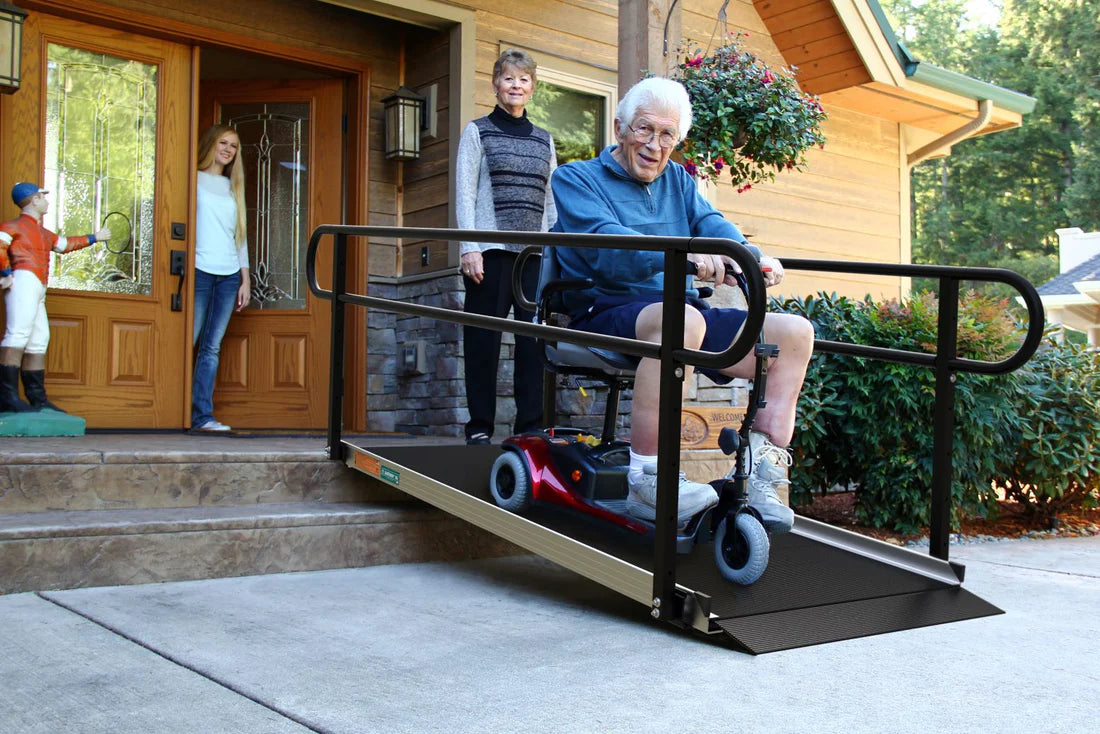

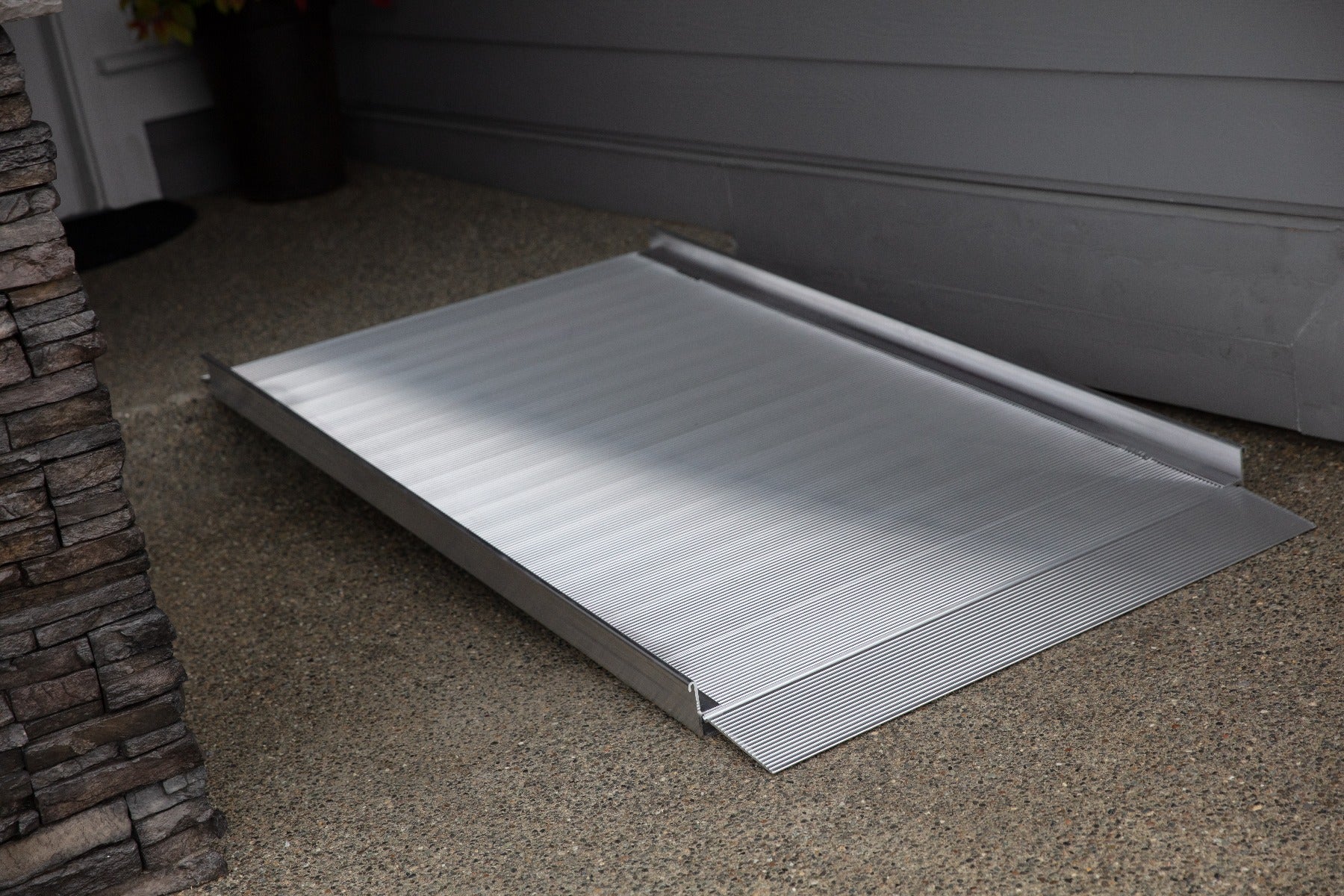

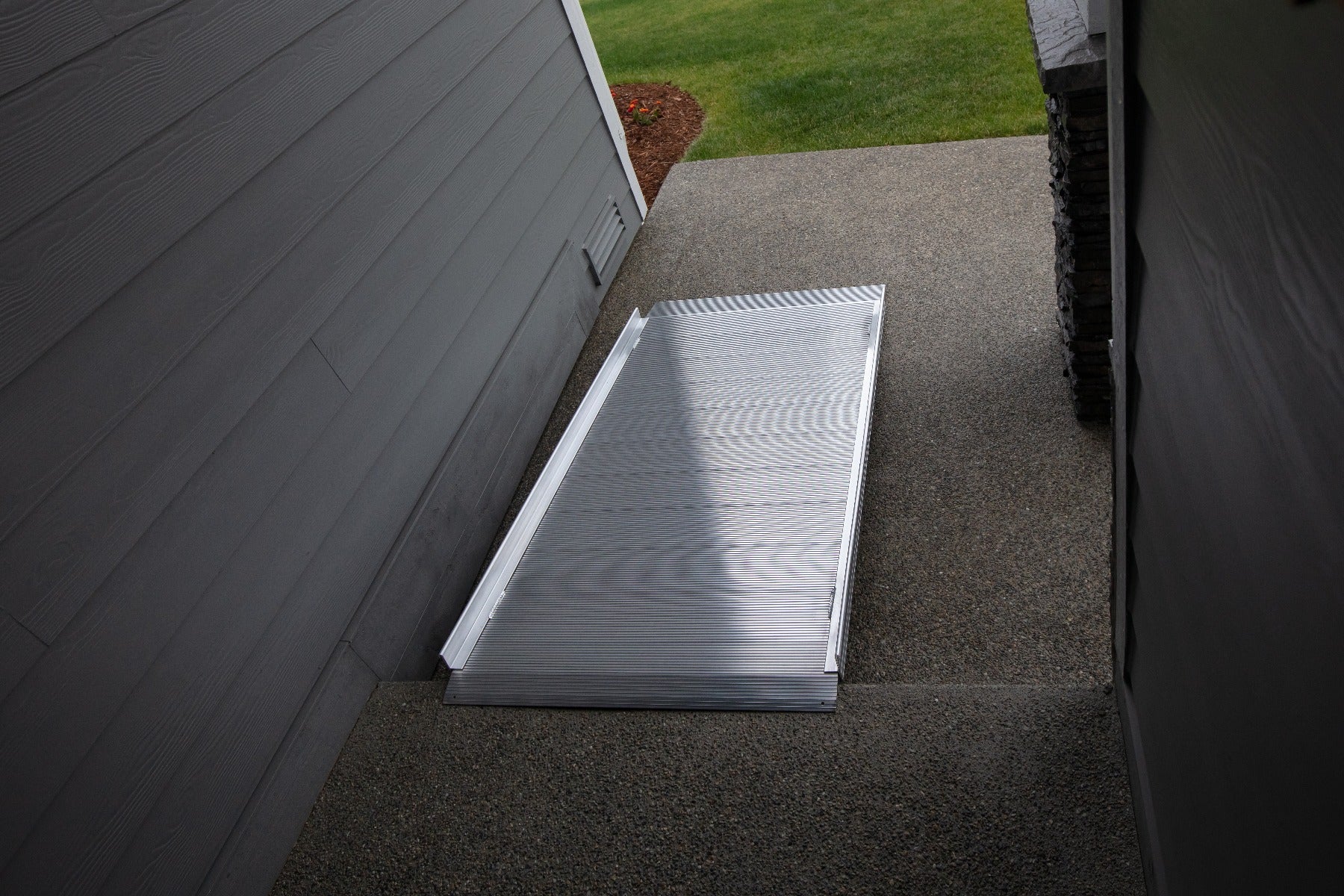

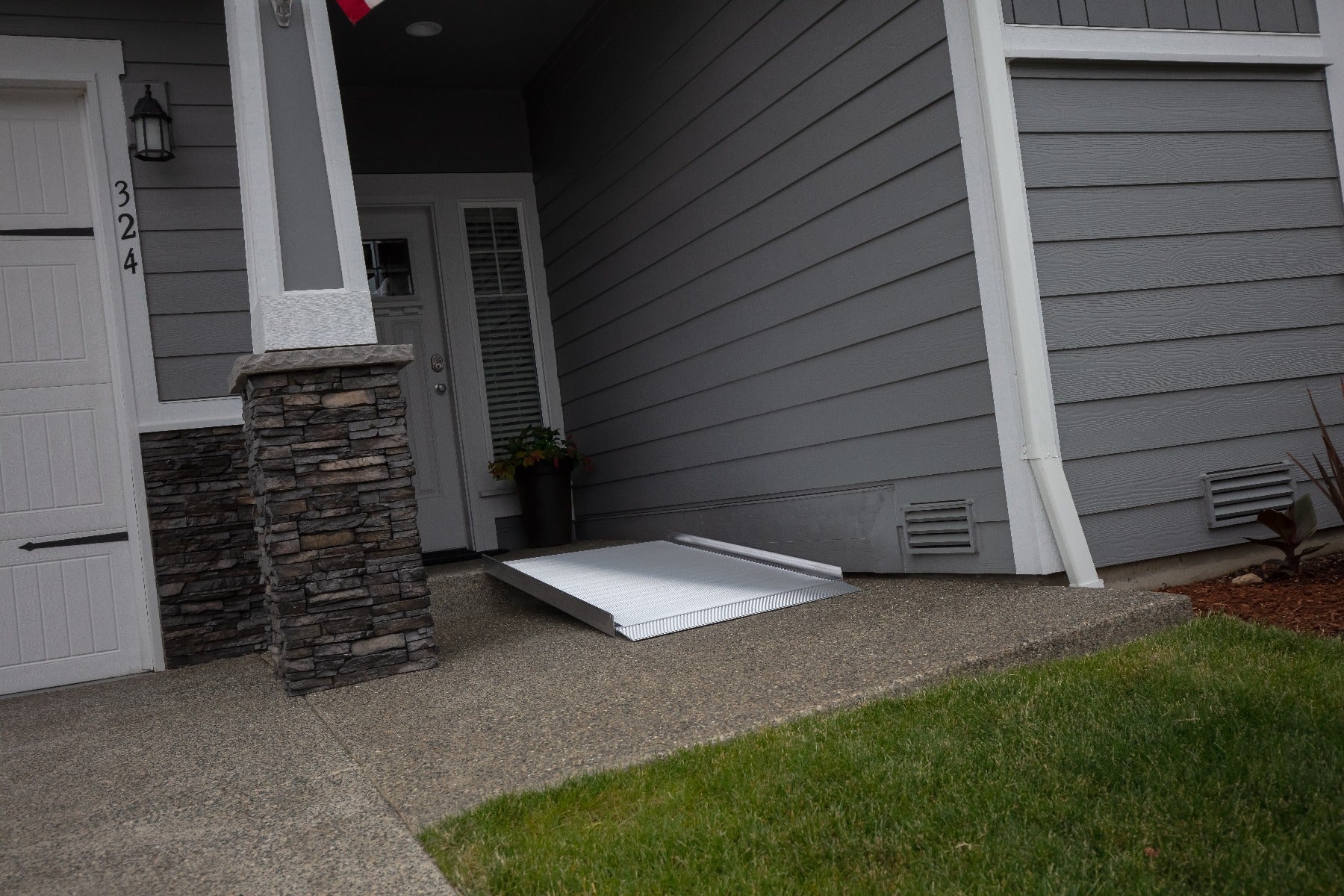

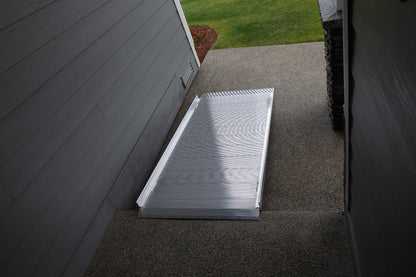

The GATEWAY® 3G Solid Surface Portable Ramp is designed to meet extended mobility needs with a seamless, slip-resistant surface. Perfect for temporary or semi-permanent access, this ramp can be easily relocated as required. Crafted from lightweight yet heavy-duty aluminum, it supports up to 1,000 lbs and is built to withstand repeated, everyday use in all weather conditions, making it ideal for scooters, wheelchairs, and walkers. The ramp's robust construction ensures it will not rust, rot, or deteriorate when exposed to outdoor elements, offering years of maintenance-free use.

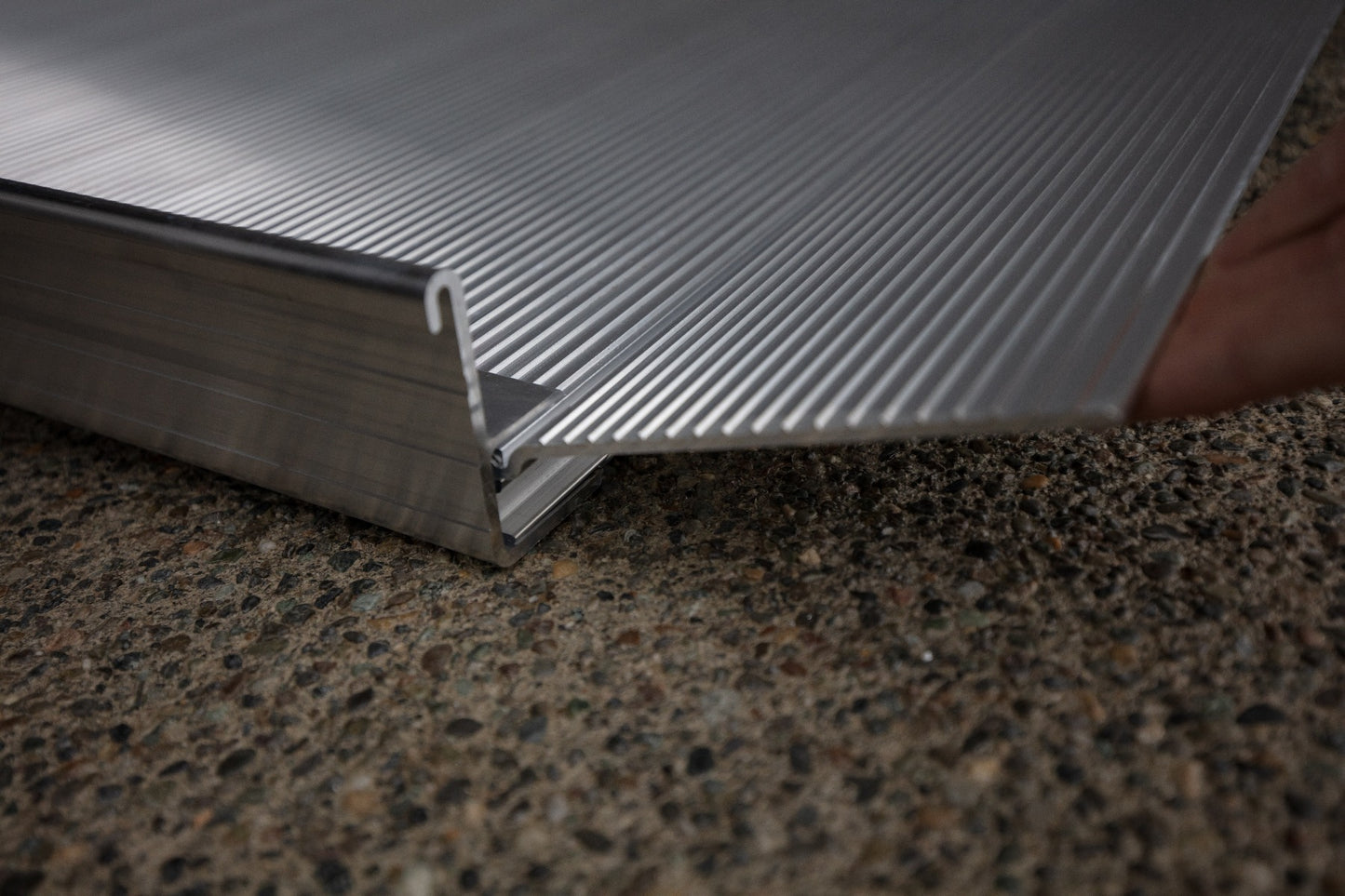

Available in various lengths from 3 to 10 feet, the GATEWAY 3G comes in three styles: ramp only, ramp with two-line handrails, and ramp with vertical picket handrails. Its design includes integrated side rail curbs, which prevent mobility equipment from driving off the edge, with 2-inch curbs on shorter ramps and 4-inch curbs on longer ones. The formed top transition and adjustable bottom transition plate provide smooth, secure ramp-to-ground transitions. Manufactured in the USA, this ramp offers a safe, durable solution for enhanced accessibility.

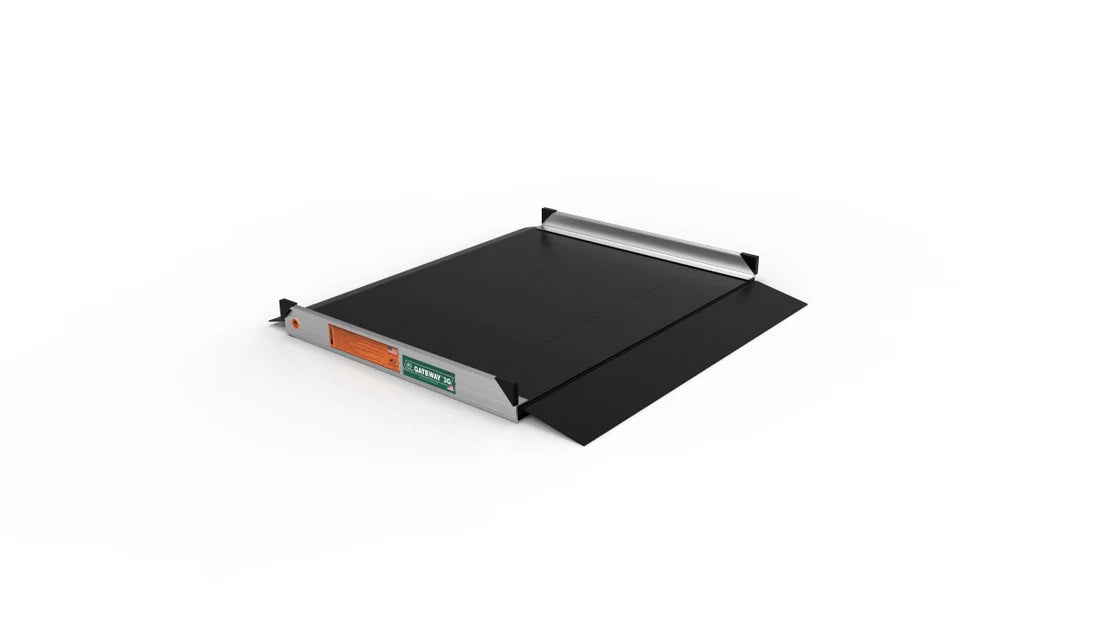

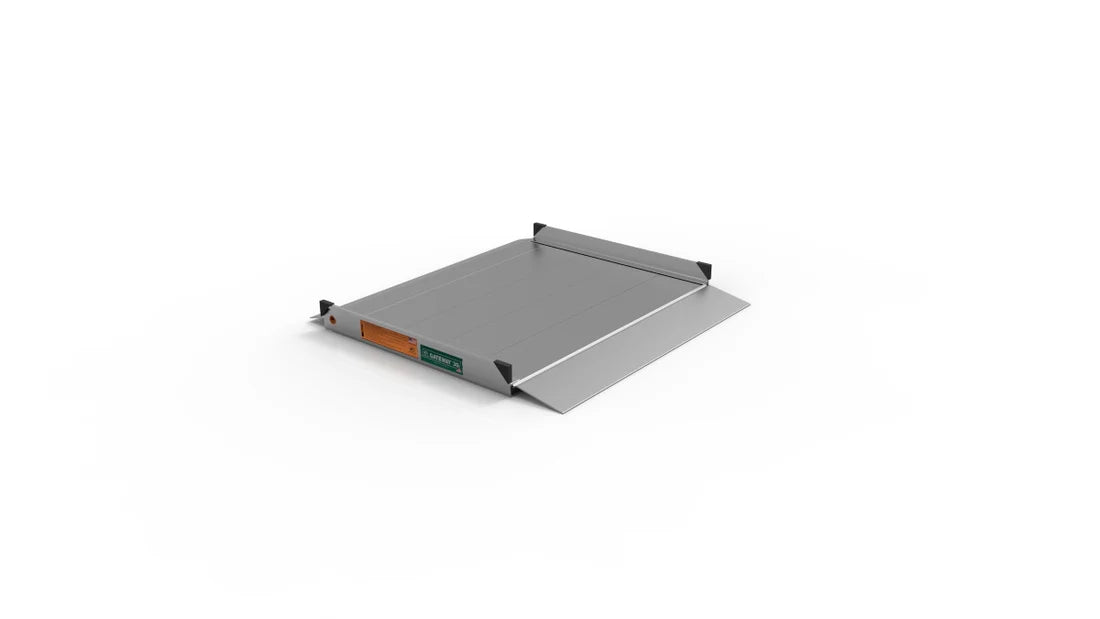

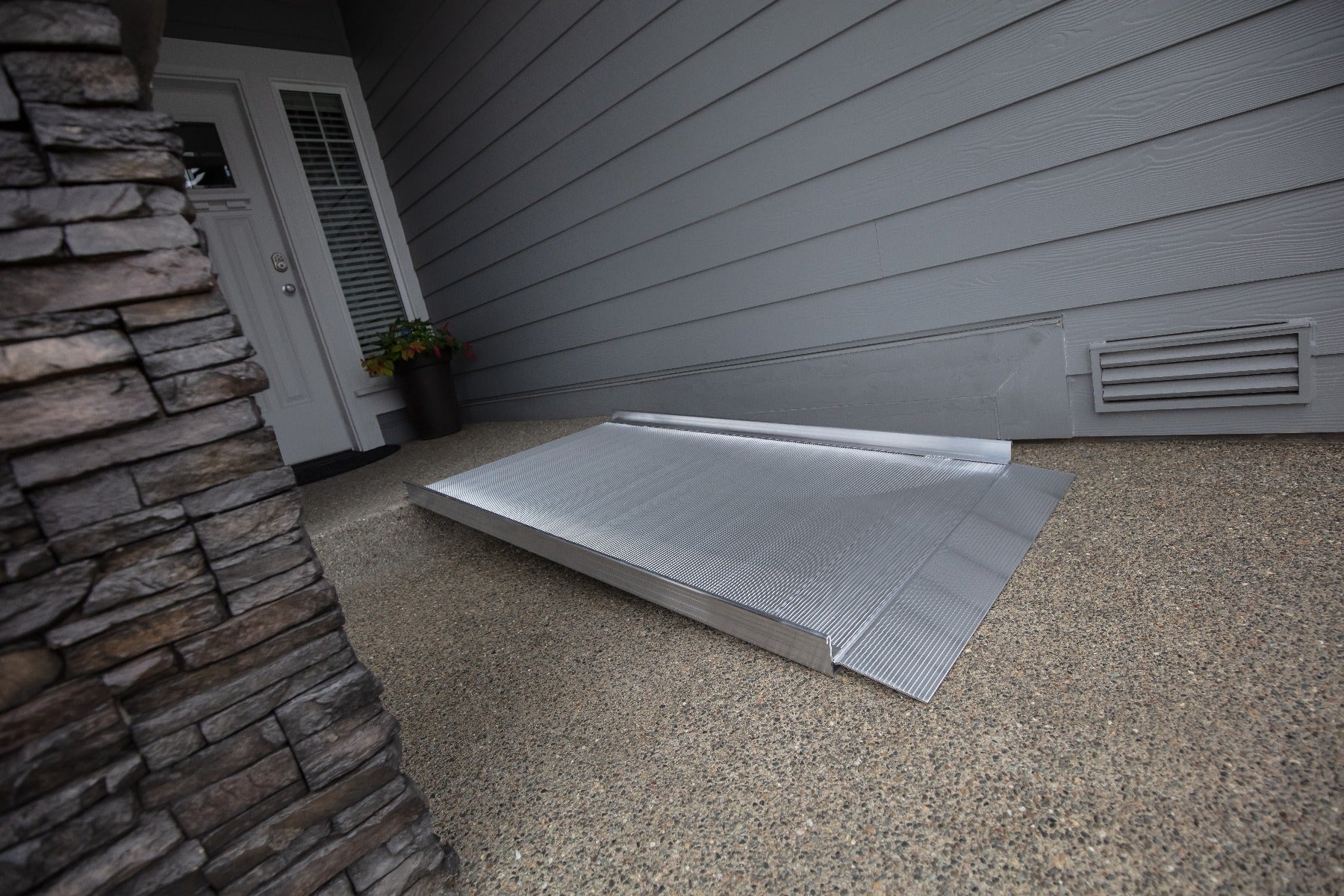

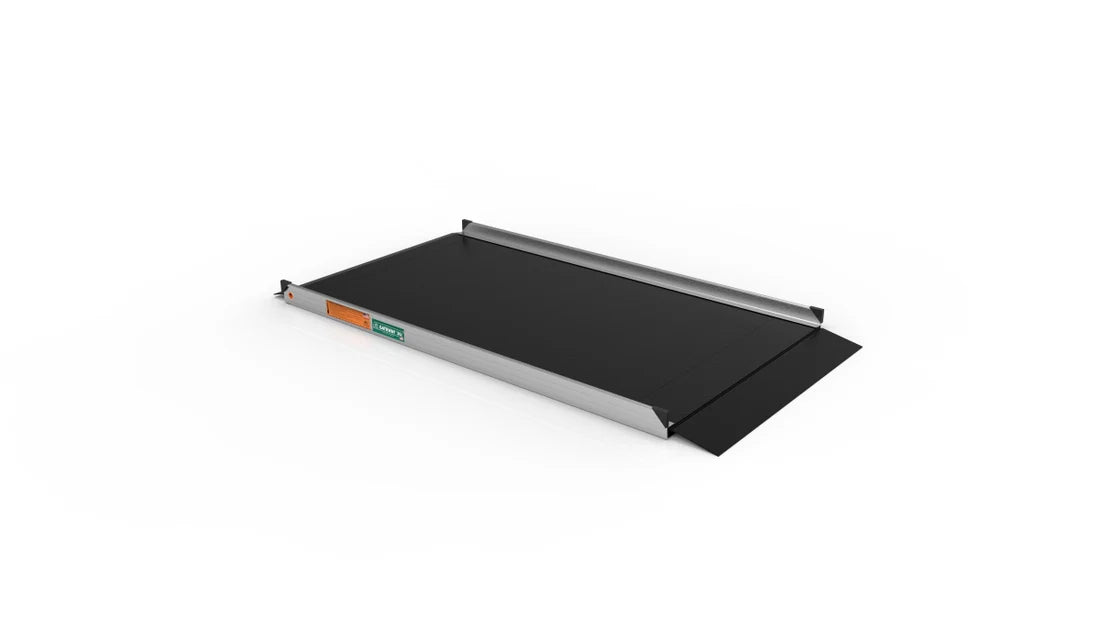

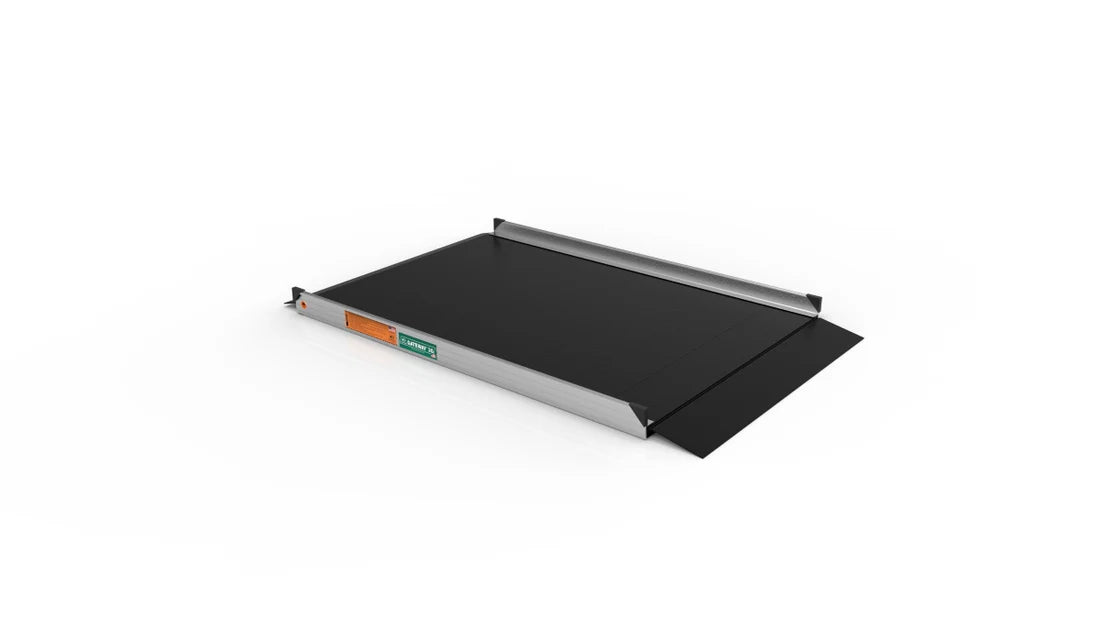

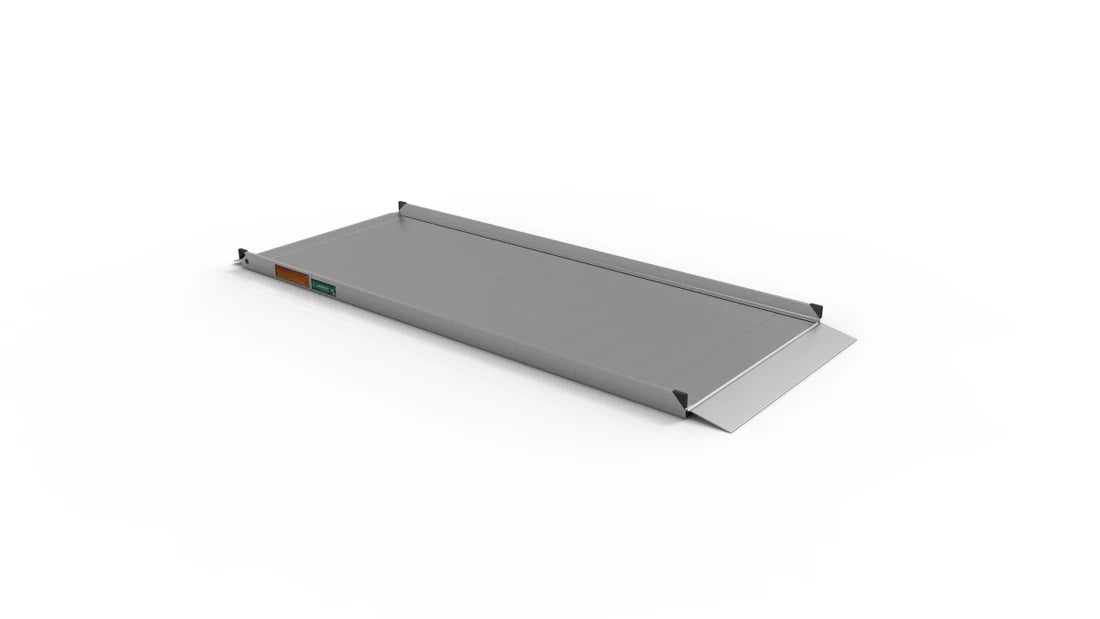

RAMP WITH NO HANDRAILS

Model	3-FT	4-FT	5-FT	6-FT	7-FT
Usable Size (LxW)	3'x36'	4'x36'	5'x36'	6'x36'	7'x36'
Overall Size (LxWxH)	3'x37'x3.5'	4'x37'x3.5'	5'x37'x3.5'	6'x37'x3.5'	7'x37'x3.5'
Curb Height (in.)	2	2	2	2	2
Weight*	24 lbs.	30 lbs.	36 lbs.	42 lbs.	50 lbs.
Weight Capacity	1000 lbs.	1000 lbs.	1000 lbs.	1000 lbs.	1000 lbs.
Usage Guidelines**	Up to 4'	Up to 6'	Up to 7'	Up to 9'	Up to 10'

Model	8-FT	9-FT	10-FT
Usable Size (LxW)	8x36	9x36	10x36
Overall Size (LxWxH)	8'x37'x3.5'	9'x37'x5.5'	10'x37'x3.5'
Curb Height (in.)	2	4	4
Weight*	54 lbs.	68 lbs.	72 lbs.
Weight Capacity	1000 lbs.	1000 lbs.	1000 lbs.
Usage Guidelines**	Up to 12'	Up to 13'	Up to 15'

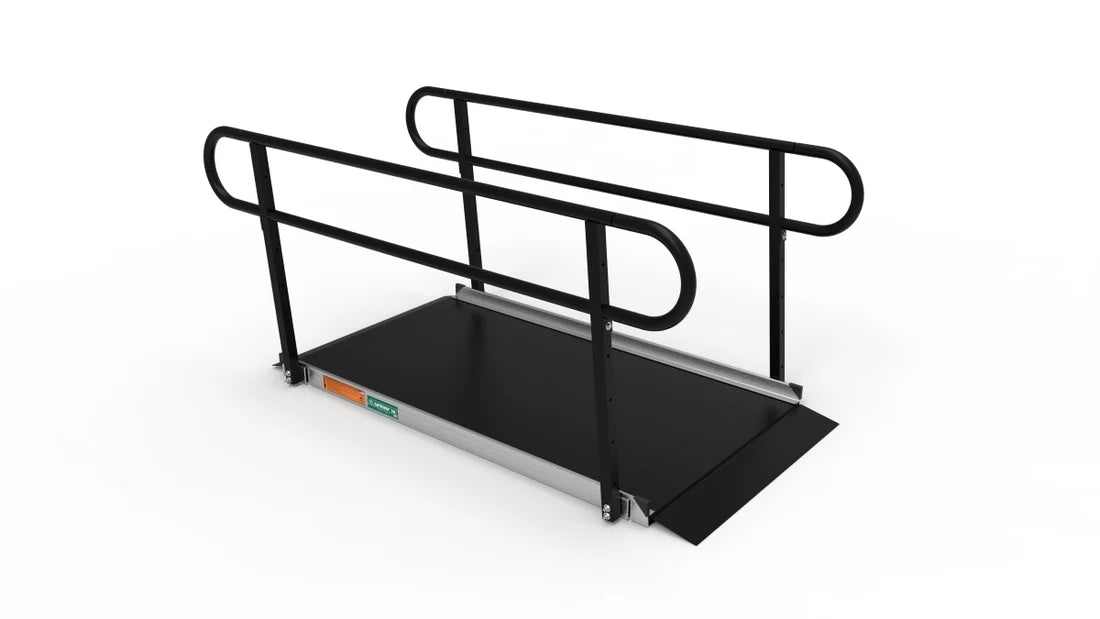

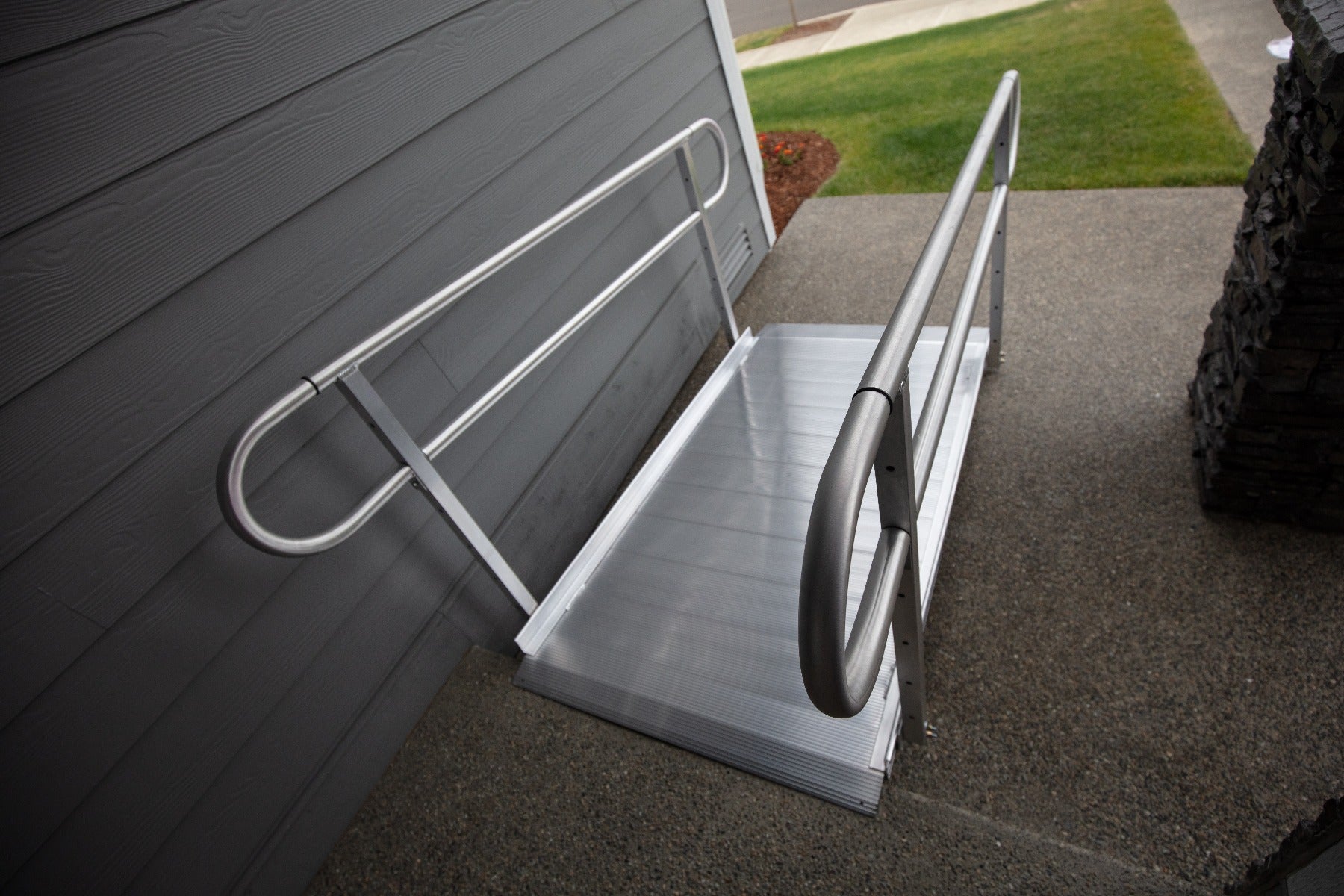

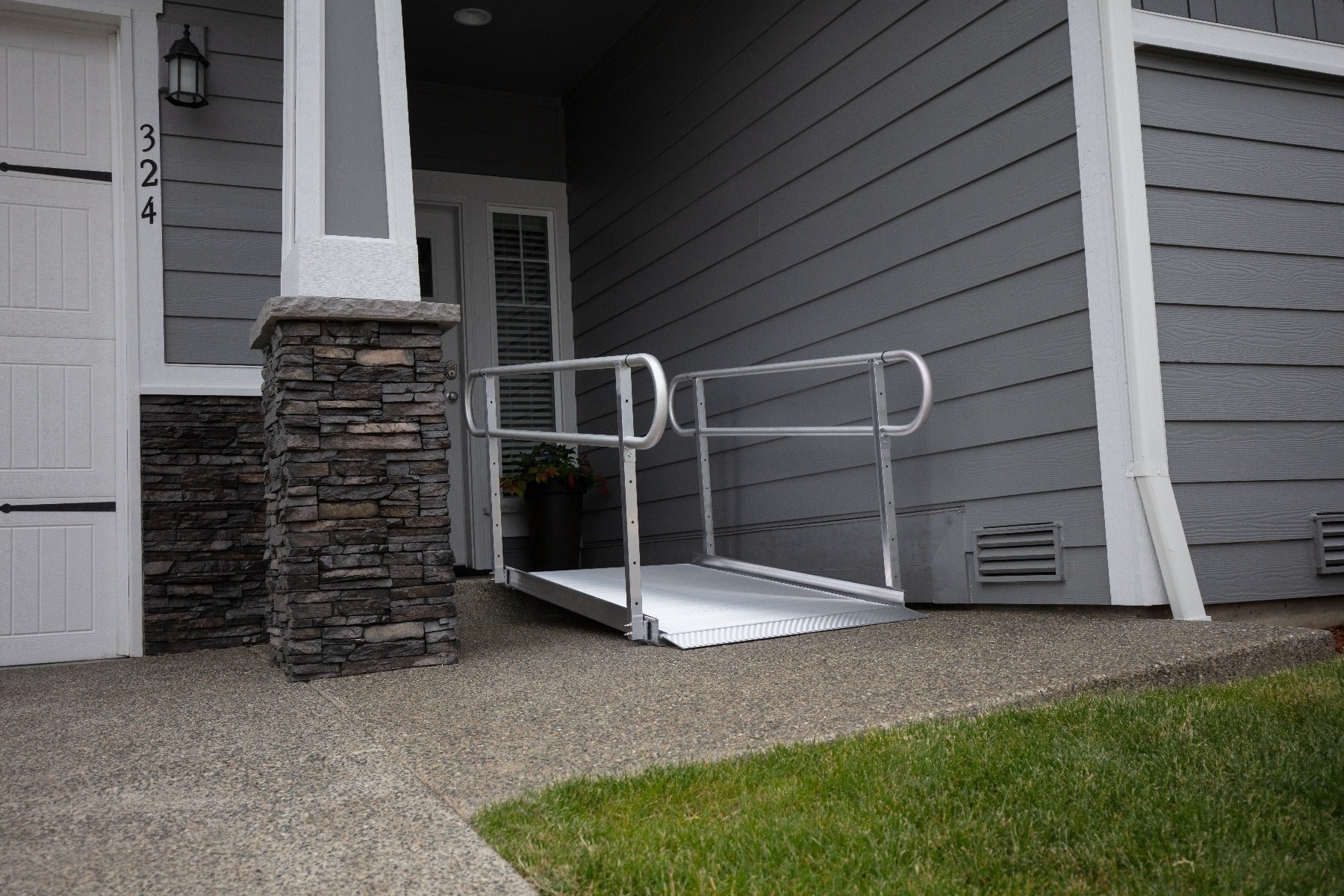

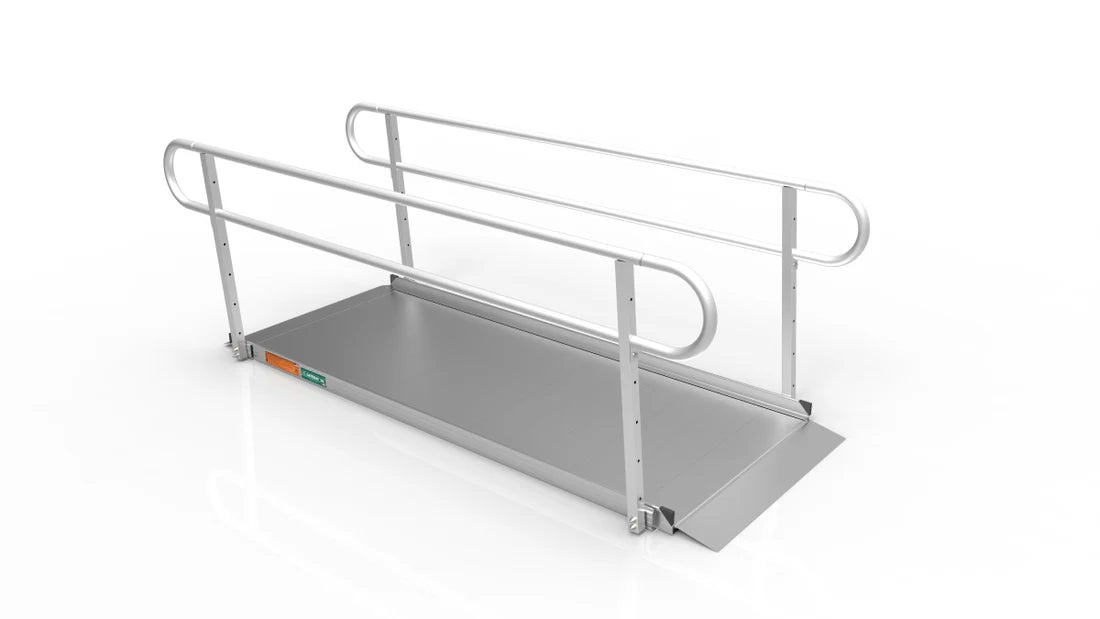

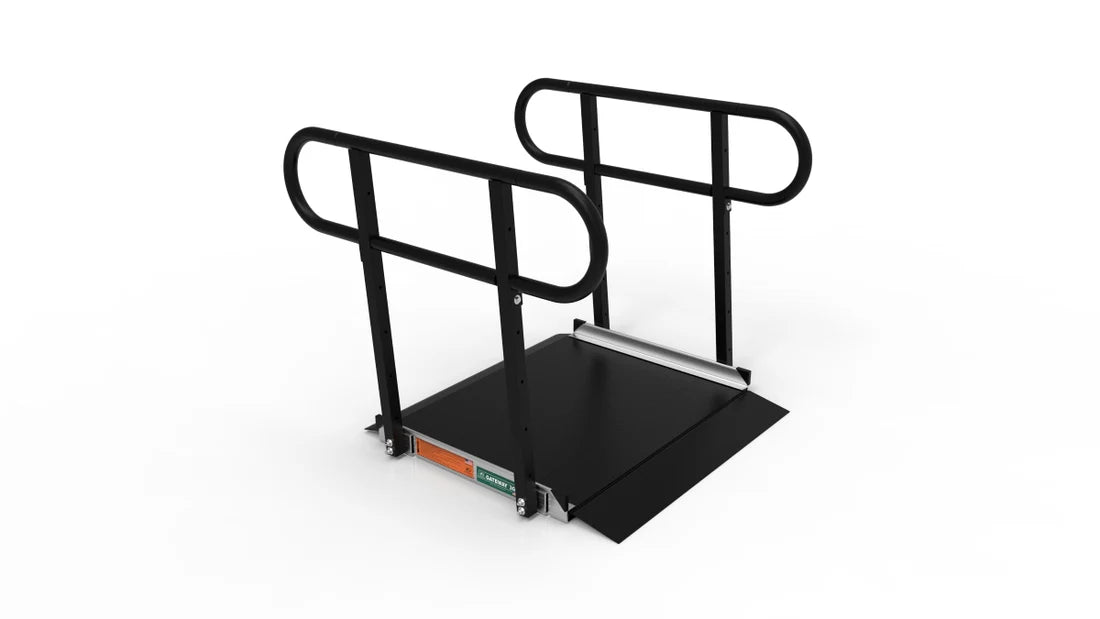

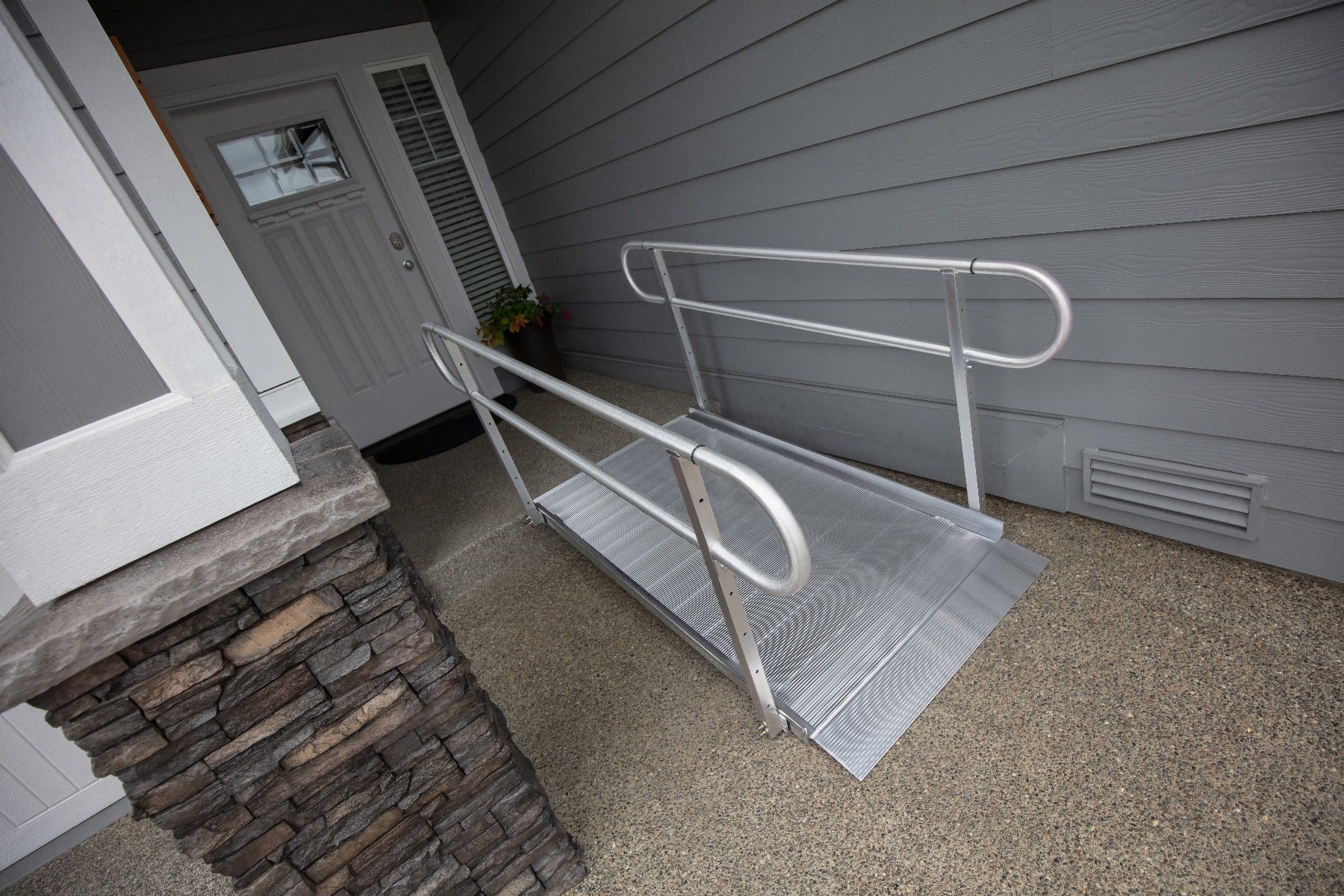

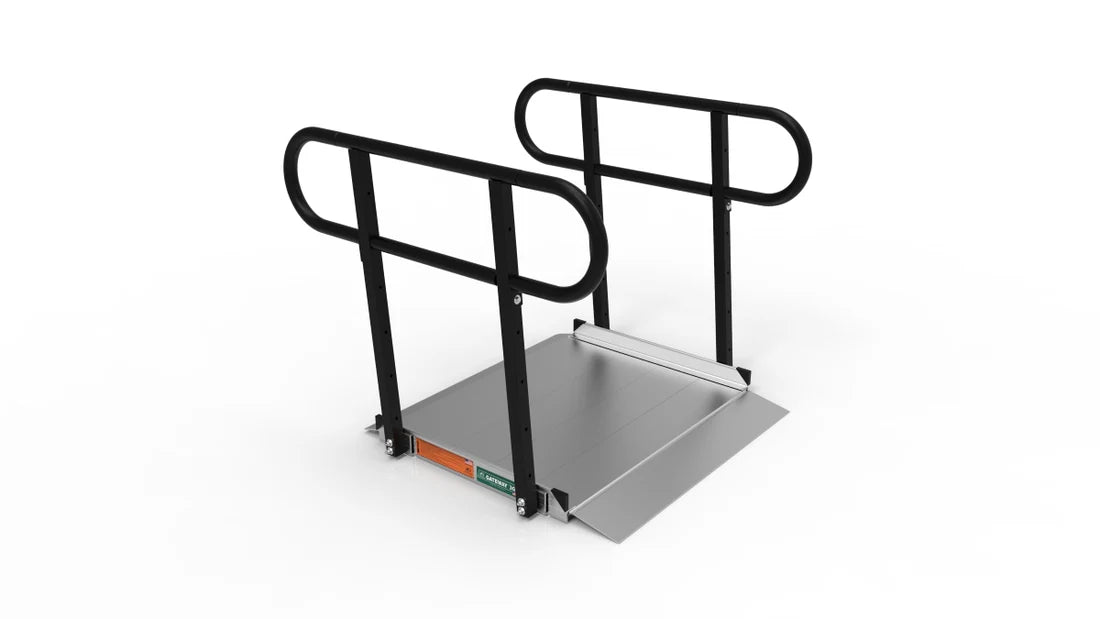

RAMP WITH TWO-LINE HANDRAILS

Model	3-FT	4-FT	5-FT	6-FT	7-FT
Usable Size (LxWxH)	3'x36'x34.5'	4'x36'x34.5'	5'x36'x34.5'	6'x36'x34.5'	7'x36'x34.5'
Overall Size (LxWxH)	3'x41.75'x36'	4'x41.75'x36	5'x41.75'x36'	6'x41.75'x36'	7'x41.75'x3.5'
Curb Height (in.)	2	2	2	2	2
Handrail Length (ft.)	2	3	4	5	6
Weight*	44 lbs.	52 lbs.	60 lbs.	68 lbs.	74 lbs.
Weight Capacity	1000 lbs.	1000 lbs.	1000 lbs.	1000 lbs.	1000 lbs.
Usage Guidelines**	Up to 4'	Up to 6'	Up to 7'	Up to 9'	Up to 10'

Model	8-FT	9-FT	10-FT
Usable Size (LxW)	8'x36'x34.5'	9'x36'x34.5'	10'x36'x34.5'
Overall Size (LxWxH)	8'x41.75'x36'	9'x41.75'x36'	10'x41.75'x36'
Curb Height (in.)	2	4	4
Handrail Length (ft.)	7	8	9
Weight*	82 lbs.	96 lbs.	106 lbs.
Weight Capacity	1000 lbs.	1000 lbs.	1000 lbs.
Usage Guidelines**	Up to 12'	Up to 13'	Up to 15'

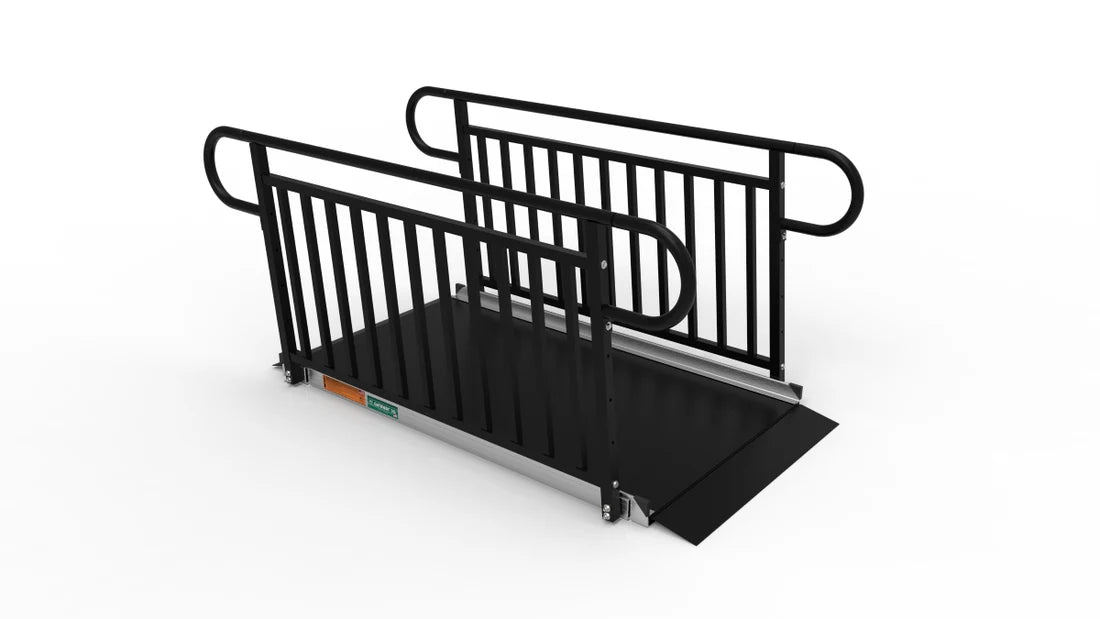

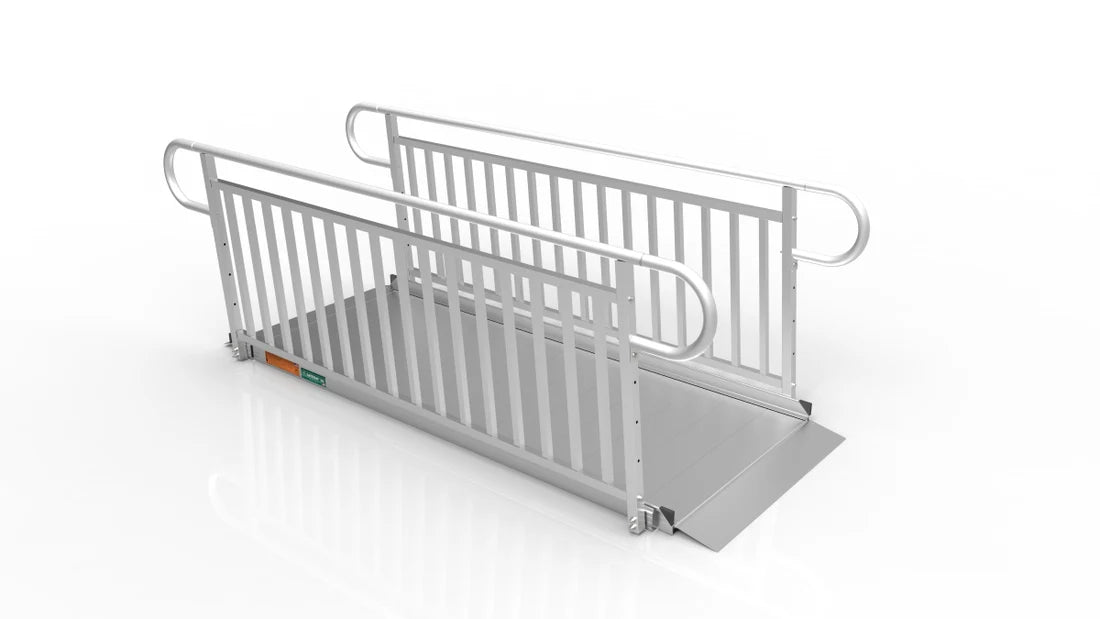

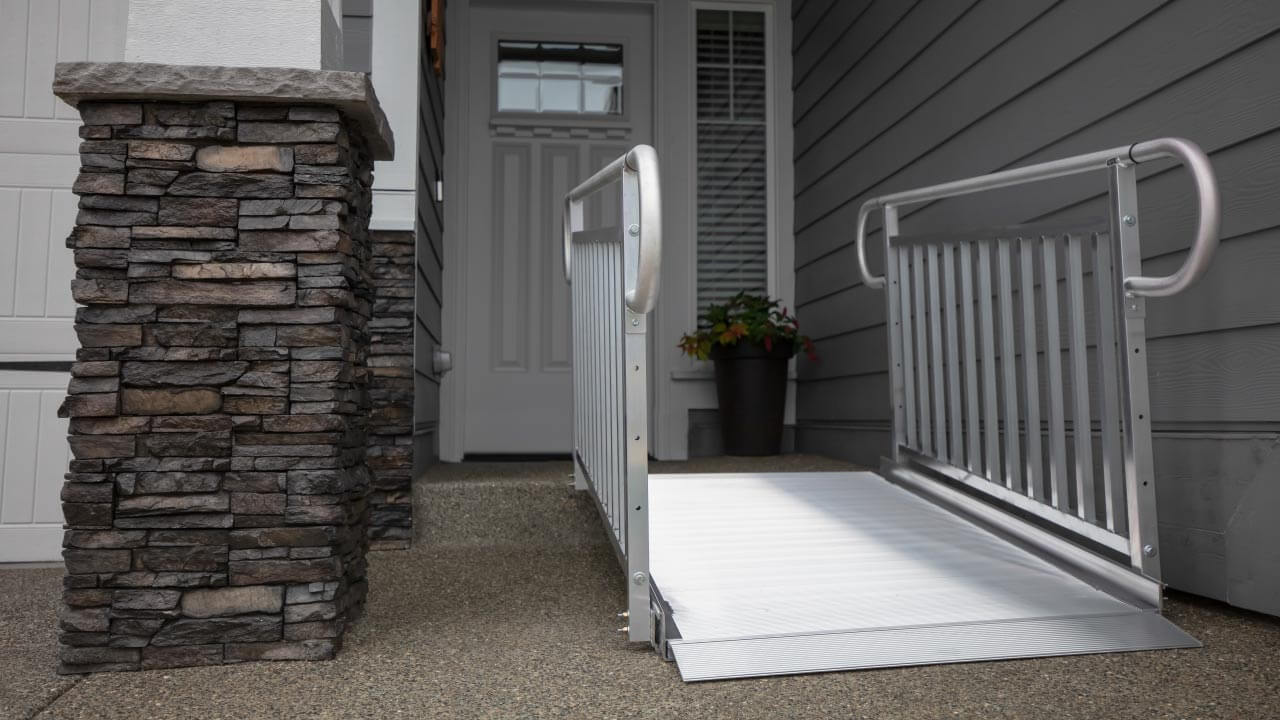

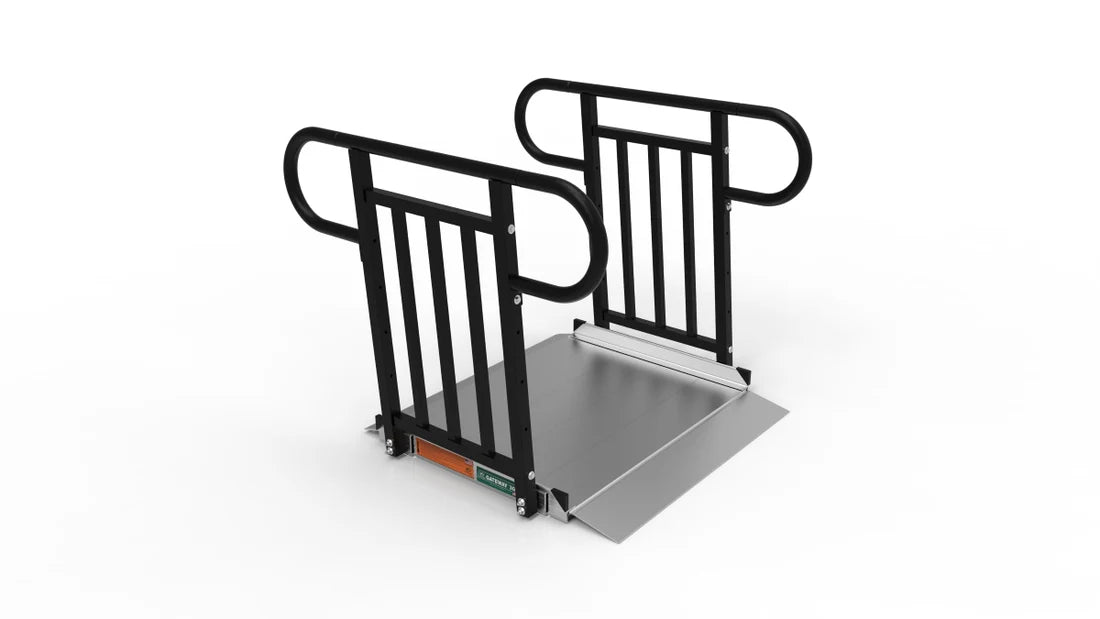

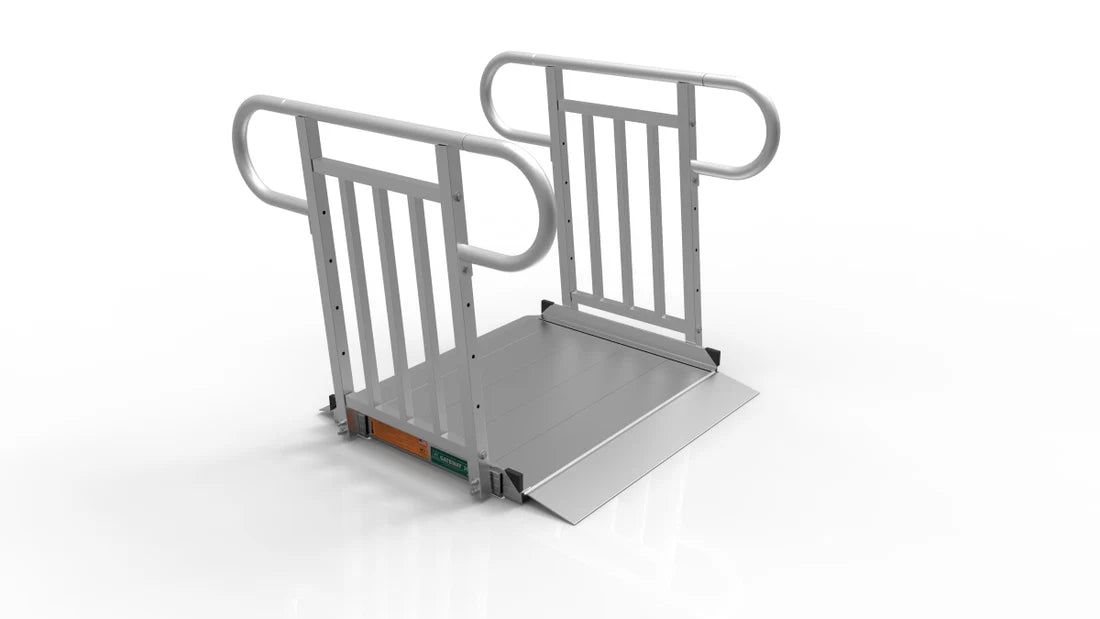

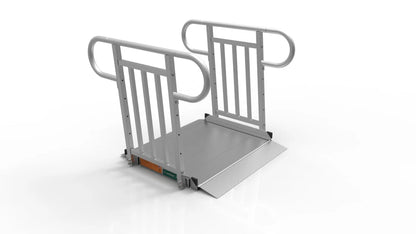

RAMP WITH VERTICAL PICKETS

Model	3-FT	4-FT	5-FT	6-FT	7-FT
Usable Size (LxWxH)	3'x36'x34.5'	4'x36'x34.5'	5'x36'x34.5'	6'x36'x34.5'	7'x36'x34.5'
Overall Size (LxWxH)	3'x41.75'x36'	4'x41.75'x36	5'x41.75'x36'	6'x41.75'x36'	7'x41.75'x3.5'
Curb Height (in.)	2	2	2	2	2
Handrail Length (ft.)	2	3	4	5	6
Weight*	46 lbs.	58 lbs.	68 lbs.	78 lbs.	90 lbs.
Weight Capacity	1000 lbs.	1000 lbs.	1000 lbs.	1000 lbs.	1000 lbs.
Usage Guidelines**	Up to 4'	Up to 6'	Up to 7'	Up to 9'	Up to 10'

Model	8-FT	9-FT	10-FT
Usable Size (LxW)	8'x36'x34.5'	9'x36'x34.5'	10'x36'x34.5'
Overall Size (LxWxH)	8'x41.75'x36'	9'x41.75'x36'	10'x41.75'x36'
Curb Height (in.)	2	4	4
Handrail Length (ft.)	7	8	9
Weight*	98 lbs.	118 lbs.	128 lbs.
Weight Capacity	1000 lbs.	1000 lbs.	1000 lbs.
Usage Guidelines**	Up to 12'	Up to 13'	Up to 15'

*Weights and dimensions are approximate and subject to change

**Consult your mobility equipment manufacturer for proper degree of incline; never exceed their recommendations.

Overview

No information available at this time.

Info

No additional information available at this time.

Documents

No product documentation available at this time.

Specifications

RAMP WITH NO HANDRAILS

Model	3-FT	4-FT	5-FT	6-FT	7-FT
Usable Size (LxW)	3'x36'	4'x36'	5'x36'	6'x36'	7'x36'
Overall Size (LxWxH)	3'x37'x3.5'	4'x37'x3.5'	5'x37'x3.5'	6'x37'x3.5'	7'x37'x3.5'
Curb Height (in.)	2	2	2	2	2
Weight*	24 lbs.	30 lbs.	36 lbs.	42 lbs.	50 lbs.
Weight Capacity	1000 lbs.	1000 lbs.	1000 lbs.	1000 lbs.	1000 lbs.
Usage Guidelines**	Up to 4'	Up to 6'	Up to 7'	Up to 9'	Up to 10'

Model	8-FT	9-FT	10-FT
Usable Size (LxW)	8x36	9x36	10x36
Overall Size (LxWxH)	8'x37'x3.5'	9'x37'x5.5'	10'x37'x3.5'
Curb Height (in.)	2	4	4
Weight*	54 lbs.	68 lbs.	72 lbs.
Weight Capacity	1000 lbs.	1000 lbs.	1000 lbs.
Usage Guidelines**	Up to 12'	Up to 13'	Up to 15'

RAMP WITH TWO-LINE HANDRAILS

Model	3-FT	4-FT	5-FT	6-FT	7-FT
Usable Size (LxWxH)	3'x36'x34.5'	4'x36'x34.5'	5'x36'x34.5'	6'x36'x34.5'	7'x36'x34.5'
Overall Size (LxWxH)	3'x41.75'x36'	4'x41.75'x36	5'x41.75'x36'	6'x41.75'x36'	7'x41.75'x3.5'
Curb Height (in.)	2	2	2	2	2
Handrail Length (ft.)	2	3	4	5	6
Weight*	44 lbs.	52 lbs.	60 lbs.	68 lbs.	74 lbs.
Weight Capacity	1000 lbs.	1000 lbs.	1000 lbs.	1000 lbs.	1000 lbs.
Usage Guidelines**	Up to 4'	Up to 6'	Up to 7'	Up to 9'	Up to 10'

Model	8-FT	9-FT	10-FT
Usable Size (LxW)	8'x36'x34.5'	9'x36'x34.5'	10'x36'x34.5'
Overall Size (LxWxH)	8'x41.75'x36'	9'x41.75'x36'	10'x41.75'x36'
Curb Height (in.)	2	4	4
Handrail Length (ft.)	7	8	9
Weight*	82 lbs.	96 lbs.	106 lbs.
Weight Capacity	1000 lbs.	1000 lbs.	1000 lbs.
Usage Guidelines**	Up to 12'	Up to 13'	Up to 15'

RAMP WITH VERTICAL PICKETS

Model	3-FT	4-FT	5-FT	6-FT	7-FT
Usable Size (LxWxH)	3'x36'x34.5'	4'x36'x34.5'	5'x36'x34.5'	6'x36'x34.5'	7'x36'x34.5'
Overall Size (LxWxH)	3'x41.75'x36'	4'x41.75'x36	5'x41.75'x36'	6'x41.75'x36'	7'x41.75'x3.5'
Curb Height (in.)	2	2	2	2	2
Handrail Length (ft.)	2	3	4	5	6
Weight*	46 lbs.	58 lbs.	68 lbs.	78 lbs.	90 lbs.
Weight Capacity	1000 lbs.	1000 lbs.	1000 lbs.	1000 lbs.	1000 lbs.
Usage Guidelines**	Up to 4'	Up to 6'	Up to 7'	Up to 9'	Up to 10'

Model	8-FT	9-FT	10-FT
Usable Size (LxW)	8'x36'x34.5'	9'x36'x34.5'	10'x36'x34.5'
Overall Size (LxWxH)	8'x41.75'x36'	9'x41.75'x36'	10'x41.75'x36'
Curb Height (in.)	2	4	4
Handrail Length (ft.)	7	8	9
Weight*	98 lbs.	118 lbs.	128 lbs.
Weight Capacity	1000 lbs.	1000 lbs.	1000 lbs.
Usage Guidelines**	Up to 12'	Up to 13'	Up to 15'

*Weights and dimensions are approximate and subject to change

**Consult your mobility equipment manufacturer for proper degree of incline; never exceed their recommendations.

Warranty

Limited Lifetime Warranty

Homecare Products, Inc., dba EZ-ACCESS (“Manufacturer”), hereby warrants its products shall be free from defects in material and workmanship under normal use and service for the lifetime of the product. This limited warranty is applicable to Manufacturer’s parts and components only (i.e., warranty excludes powder-coated finish, applied non-skid tape, etc.).
