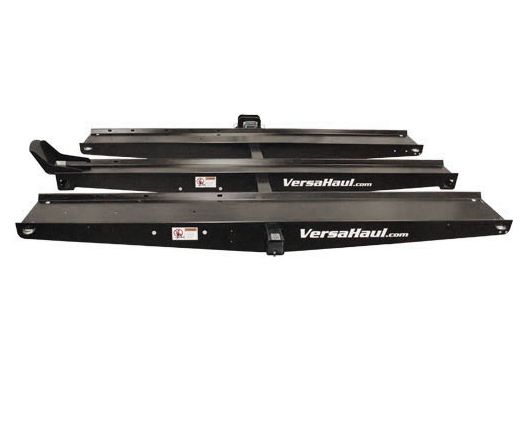

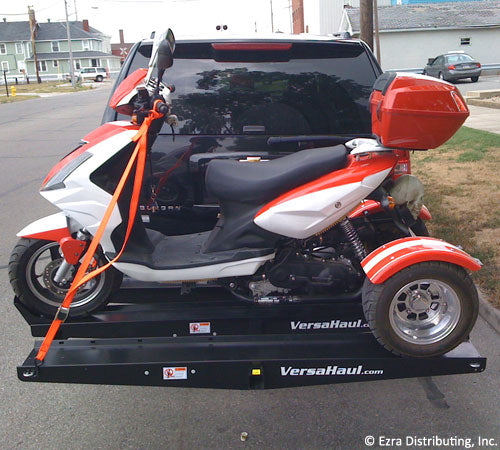

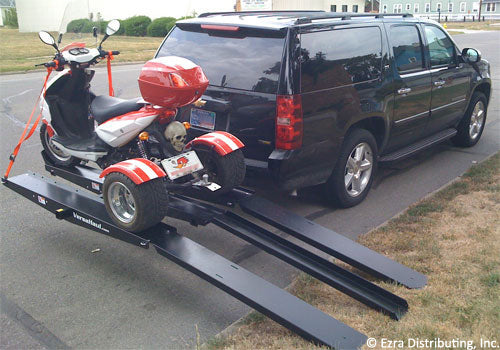

Trike Carrier with Ramp

Sku: VH-TRIKE
Starting at: $1,399.00 USD
$1,399.00
Shipping calculated at checkout.

The VH-TRIKE is designed to safely carry 600 lbs total but is limited to only 500 on the VH-55 rail.

Features:

  • Fits any class III or IV hitch

  • Powder coat finish

  • Easily stores away

  • Boxed for UPS shipping

  • Reversible Rails

What's Included:

  • Anti-tilt lock bracket

  • 50 in. main tube

  • 1 extended wheel stop

  • 8 tie down loops

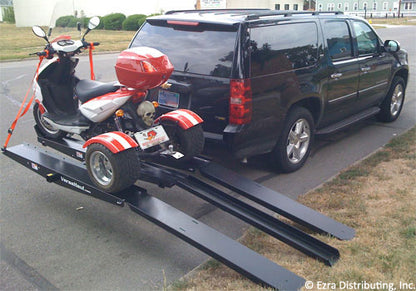

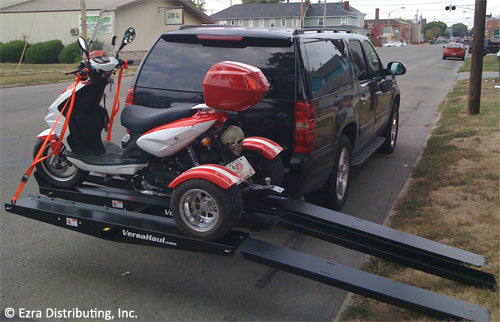

  • 3 ramps

  • 2 reflectors

  • Instruction Booklet

  • Reverse Lock Bracket Instructions

Hitch:

Most Class III hitches are rated for 500 lbs. Most Class IV hitches are rated for 1000 lbs. Low hitch: The VersaHaul main tube extends out of the hitch at the same level. Hitches low to the ground will not work properly.

Recessed Hitches will shorten the length of the carrier tube.

Vehicle:

Your hauling weight may be limited by your vehicle's capacity to carry a load and your vehicle's suspension. Please refer to information regarding your specific vehicle.

Minimum Ground Clearance

Use the chart below to determine the minimum ground clearance required to properly load your mobility scooter onto a VH-MS or VH-MS XL carrier. Results are in inches.

Wheel Base of Mobility Scooter (inches)

Hitch Height (inches)
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
8
0.99
1.02
1.06
1.09
1.12
1.16
1.19
1.23
1.26
1.29
1.33
1.36
1.39
1.43
1.46
9
1.11
1.15
1.19
1.23
1.27
1.30
1.34
1.38
1.42
1.45
1.49
1.53
1.57
1.60
1.64
10
1.24
1.28
1.32
1.36
1.41
1.45
1.49
1.53
1.57
1.62
1.66
1.70
1.74
1.78
1.83
11
1.36
1.41
1.45
1.50
1.55
1.59
1.64
1.68
1.73
1.78
1.82
1.87
1.92
1.96
2.01
12
1.48
1.54
1.59
1.64
1.69
1.74
1.79
1.84
1.89
1.94
1.99
2.04
2.09
2.14
2.19
13
1.61
1.66
1.72
1.77
1.83
1.88
1.94
1.99
2.05
2.10
2.16
2.21
2.27
2.32
2.38
14
1.73
1.79
1.85
1.91
1.97
2.03
2.09
2.15
2.21
2.27
2.32
2.38
2.44
2.50
2.56
15
1.86
1.92
1.98
2.05
2.11
2.17
2.24
2.30
2.37
2.43
2.49
2.56
2.62
2.68
2.75
16
1.98
2.05
2.12
2.19
2.25
2.32
2.39
2.46
2.53
2.59
2.66
2.73
2.80
2.86
2.93
17
2.11
2.18
2.25
2.32
2.40
2.47
2.54
2.61
2.69
2.76
2.83
2.90
2.98
3.05
3.12
18
2.23
2.31
2.39
2.46
2.54
2.62
2.69
2.77
2.85
2.92
3.00
3.08
3.15
3.23
3.13
19
2.36
2.44
2.52
2.60
2.68
2.77
2.85
2.93
3.01
3.09
3.17
3.25
3.33
3.42
3.50
20
2.49
2.57
2.66
2.74
2.83
2.92
3.00
3.09
3.17
3.26
3.34
3.43
3.52
3.60
3.69
21
2.61
2.70
2.80
2.89
2.98
3.07
3.16
3.25
3.34
3.43
3.52
3.61
3.70
3.79
3.88
22
2.74
2.84
2.93
3.03
3.12
3.22
3.31
3.41
3.50
3.60
3.69
3.79
3.88
3.98
4.07
23
2.87
2.97
3.07
3.17
3.27
3.37
3.47
3.57
3.67
3.77
3.87
3.97
4.07
4.17
4.27
24
3.00
3.11
3.21
3.32
3.42
3.52
3.63
3.73
3.84
3.94
4.05
4.15
4.26
4.36
4.46

Overview

No information available at this time.

Info

No additional information available at this time.

Documents

No product documentation available at this time.

Specifications

Model Number: VH-TRIKE

Description: Trike Scooter Carrier with Ramp

Approx. Shipping Wt.: 205 lbs.

Max Load: 600 lbs.

Length of ramp: 60 in.

Width of VH-55 (center) ramp: 5.5 in.

Width of VH-90 (outer) ramps: 9.25 in.
